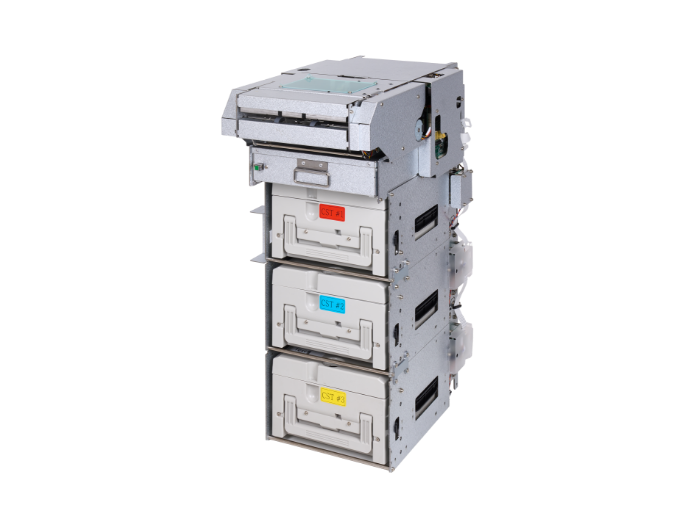

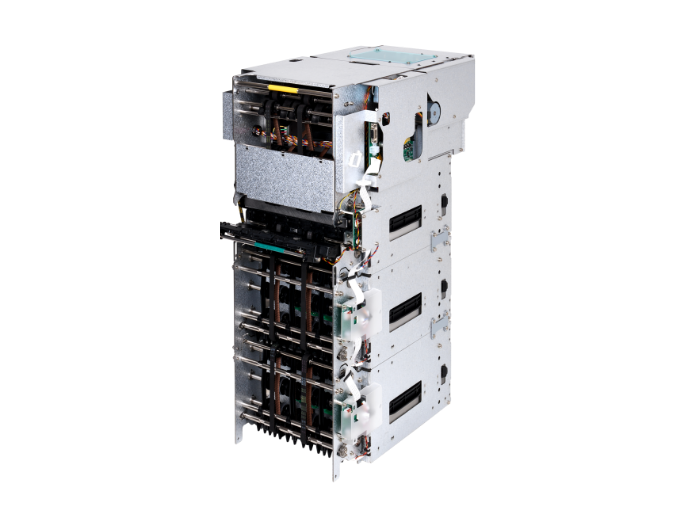

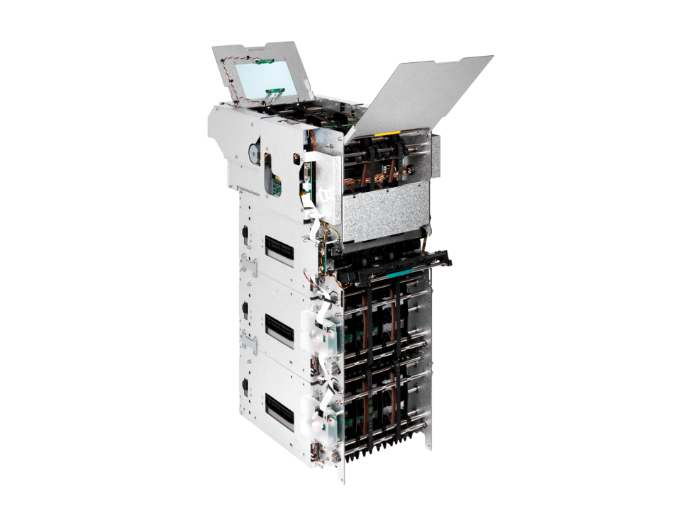

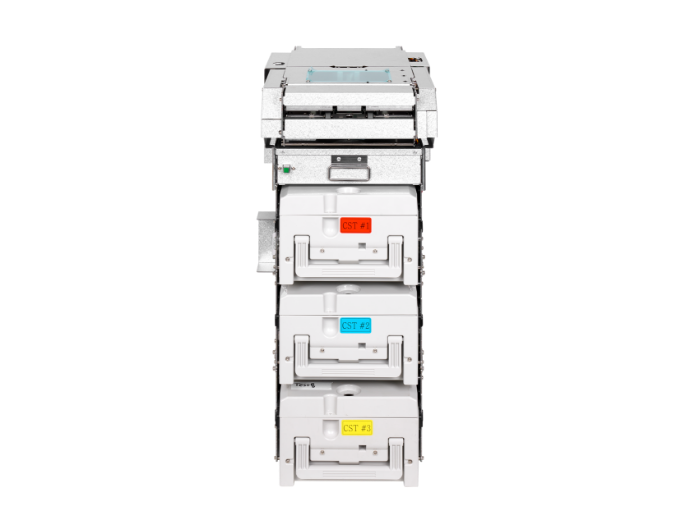

Cash Dispenser HCDM-PT/PTS

The ultimate model designed for market needs. Proven track record in international markets with foreign currency exchange kiosks.

This presenter type dispenser is designed with a cassette-type and front-access structure for easy maintenance. It can hold up to 2,000 banknotes and dispenses them at a rapid speed of 4 notes per second. With a reject capacity of up to 100 notes, the system also supports cassette expansion for up to 6 denominations, allowing it to handle a variety of currencies.

We can confidently say this is a top-tier product that meets market demands, particularly with its retract function which helps prevent user errors. Also available various currencies, including USD, JPY and EUR, and provides an even more effective kiosk solution with its optional image scanning function.

HCDM-PT-1K/PT-2K : Standard Dispenser Model
HCDM-PTS-1K/PTS-2K : Standard Model with Image Scanner

Catalogue Download

Features

Cassette-Type Structure
Front-Access Maintenance
Selectable Structure 1K and 2K Cassette
Optional External Shutter
Up to 2,000 Notes per Cassette Capacity
Up to 100 Notes Reject Capacity
4 Notes/sec Dispensing Speed
Supports KRW, JPY, USD, EUR, CNY, INR, IDR etc
Cassette Expansion: Up to 6 Denominations
Image Scan Function (Option)
XFS supports

Specifications

General
CDU Type	Cassette type
Maintenance	Front service type
Note Loading	Direct loading into cassette
Bundle Presenter	Yes
Max Dispensing Notes	Max 100 notes
Dispensing Speed	Max 4 notes/sec
Cassette capacity	Max 2,000 notes (HCDM-PT-1K) Max 1,000 notes (HCDM-PT-2K) selectable with 1K and 2K cassette
Reject Box Capacity	Max 100 notes
Scanning Device	Dual CIS option (only Korean domestic market)
Available Notes	KRW, JPY, USD, EUR, CNY, INR, IDR etc
Detection	Double (ultra sonic) / Skew / Length / Folding
Feeding Mechanism	Dual timing belts feeding
Note Separation	Friction roller mechanism
Note Stacking	Escrow and bundle present
Cassette Locker	Yes
Shutter (External or Built-in)	Yes (optional external shutter)
Retraction for Forgotten Note	Yes (common to retract and reject)

Interface & Power
Communication	RS-232C Async / High Speed USB 2.0 (image option only)
XFS Supports	Yes (version 3.1)
Power	DC24V, 2A~5A max (8 cassettes)

Physical
Size (1cassette model)	283mm(W)309mm(H)452mm(D) Height (H) increases by 154 mm per denomination.
Cassette Expansion	Up to 6 Cassettes
Weight (1cassette model)	Approx 8kg
Environment (in operation)	Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 %

Technical Support
Protocol Specifications	Yes (Manual guidance)
SDK	Yes (API and manual guidance)
Others	Test Program, Dimension Drawings, SDK manual
