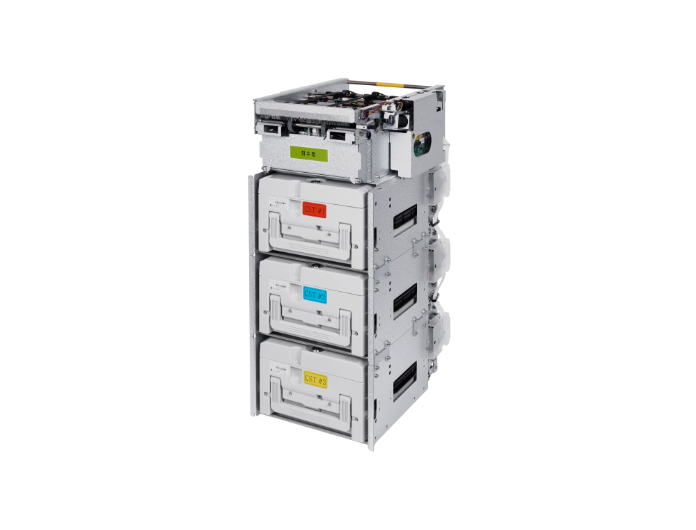

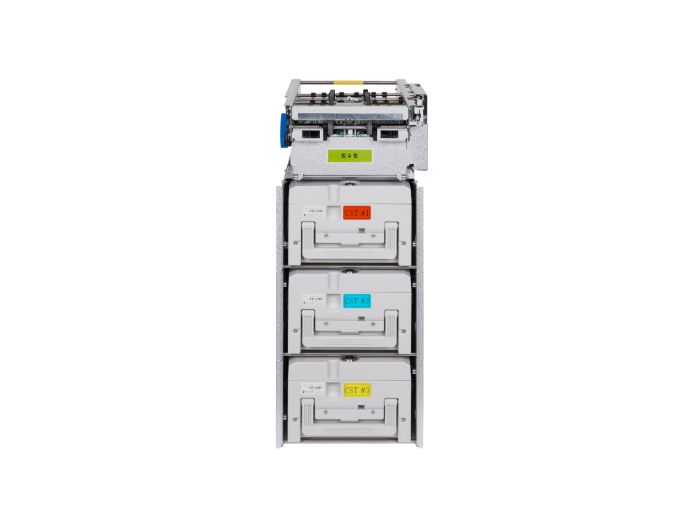

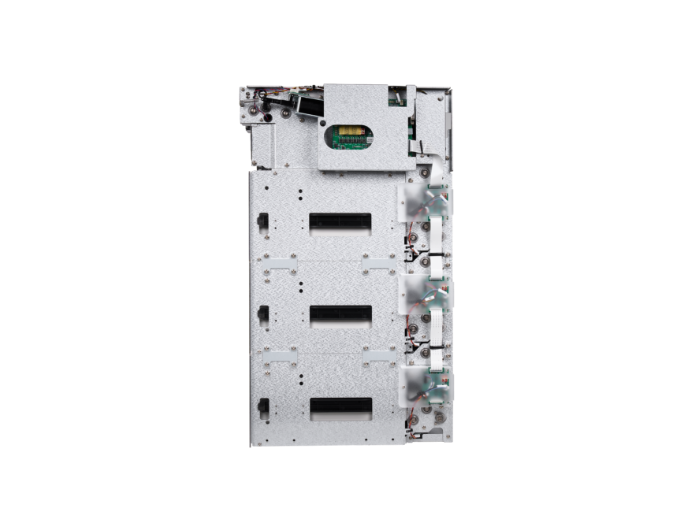

Cash Dispenser HCDM-10K/10KS
Cash Dispenser HCDM-10K/10KS
Cash Dispenser HCDM-10K/10KS

Cash Dispenser HCDM-10K/10KS

Built for essential functions, Reliable and versatile model for Self-Service Kiosks

Designed with a cassette-type and front-access maintenance structure for easy upkeep, our product can hold up to 1,000 banknotes and dispense them at a rapid speed of 3 notes per second. It also boasts performance with a reject capacity of up to 100 notes and can be expanded to handle a maximum of 6 cassette denominations, allowing it to manage various currencies with kiosks.



This is the right system processing not only KRW banknotes but also currencies like USD, JPY, EUR for versatile kiosks.



Catalogue Download

Features

  • Cassette-Type Structure
  • Front-Access Maintenance
  • Up to 1,000 Notes per Cassette Capacity
  • Up to 100 Notes Reject Capacity
  • 3 Notes/sec Dispensing Speed
  • Supports KRW, JPY, USD, EUR, CNY, INR, IDR etc
  • Cassette Expansion: Up to 6 Denominations
  • XFS supports

Specifications

General
CDU Type Cassette type
Maintenance Front service type
Note Loading Direct loading into cassette
Bundle Presenter N/A
Max Dispensing Notes Max 100 notes
Dispensing Speed Max 3 notes/sec
Cassette capacity Max 1,000 notes
Reject Box Capacity Max 100 notes
Scanning Device N/A
Available Notes KRW, JPY, USD, EUR, CNY, INR, IDR etc
Detection Double (ultra sonic) / Skew / Length / Folding
Feeding Mechanism Dual timing belts feeding
Note Separation Friction roller mechanism
Note Stacking Free Air (Spray)
Cassette Locker Yes
Shutter (External or Built-in) N/A
Retraction for Forgotten Note N/A
Interface & Power
Communication RS-232C Async / High Speed USB 2.0 (image option only)
XFS Supports Yes (version 3.1)
Power DC24V, 2A~5A max (6 cassettes)
Physical
Size (1cassette model) 286mm(W)*287mm(H)*351mm(D)
Height (H) increases by 151 mm per denomination.
Cassette Expansion Up to 6 Cassettes
Weight (1cassette model) Approx 6kg
Environment (in operation) Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 %
Technical Support
Protocol Specifications Yes (Manual guidance)
SDK Yes (API and manual guidance)
Others Test Program, Dimension Drawings, SDK manual
