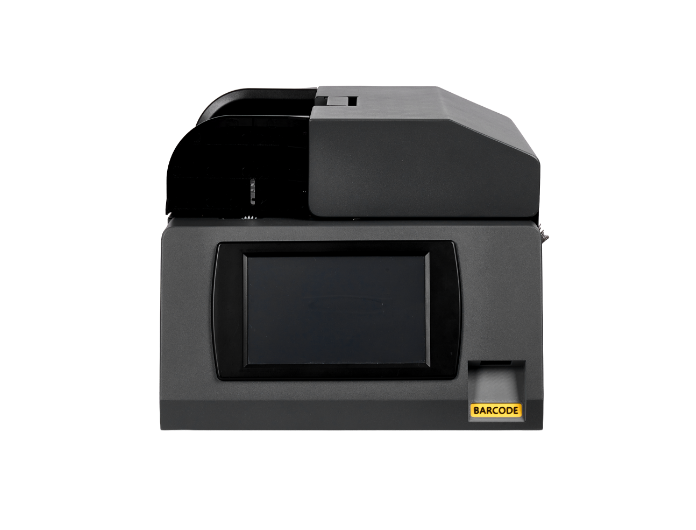

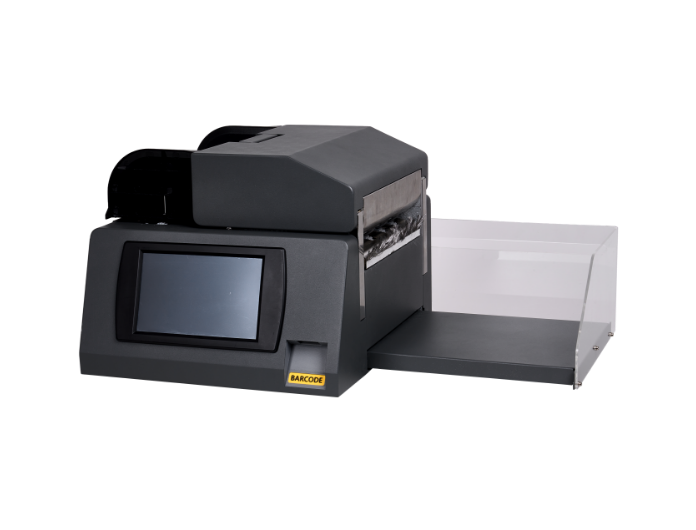

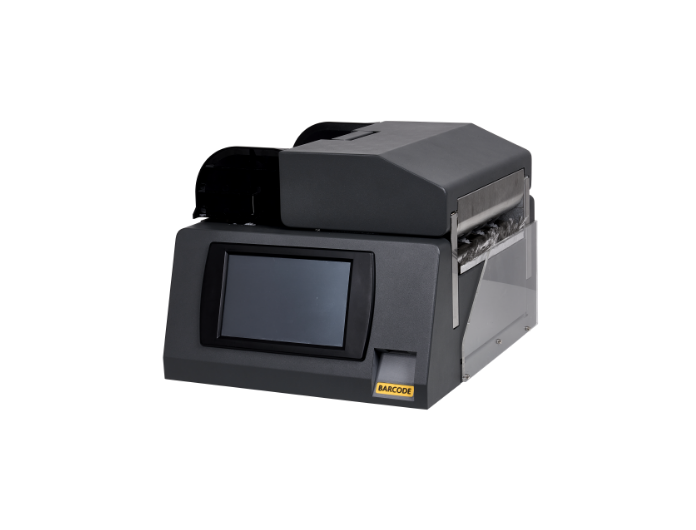

Envelop Reader & Scanner HERM-3000
Envelop Reader & Scanner HERM-3000
Envelop Reader & Scanner HERM-3000
Envelop Reader & Scanner HERM-3000

Envelop Reader & Scanner HERM-3000

2nd Generation Mail-in Ballot Reader & Scanner

This product is the 2nd Generation Mail-in Ballot Reader & Scanner optimized for pre-election envelopes. It features automatic envelope feeding, scanning, and barcode reading capabilities.



This model is a significant upgrade from its predecessor HERM-1000, having been reborn with an improved pickup mechanism, more precise drive control, enhanced recognition performance, and user-friendly software.



To ensure accuracy, the product incorporates a side CIS (Contact Image Sensor) to provide an envelope double detection function. For user convenience, it supports a 7-inch LCD touch panel and an audio guidance function.



In terms of performance, the machine can handle up to max 50 envelopes per batch and rapidly processes high volumes of return envelopes at a speed of over 100 per minute. Furthermore, it is designed for system scalability, allowing it to be interlinked with a handheld barcode reader.

Features

  • Improved mechanism and enhanced recognition performance compared to the 1st generation model
  • Automatic envelope feeding, scanning, and barcode reading capability
  • 50-envelope loading and stacking capacity
  • Processing speed of over 120 envelopes per minute
  • Envelope double-feed detection via CIS (Contact Image Sensor)
  • 7-inch LCD touch panel
  • Audio guidance function support
  • Interlink with an external barcode reader

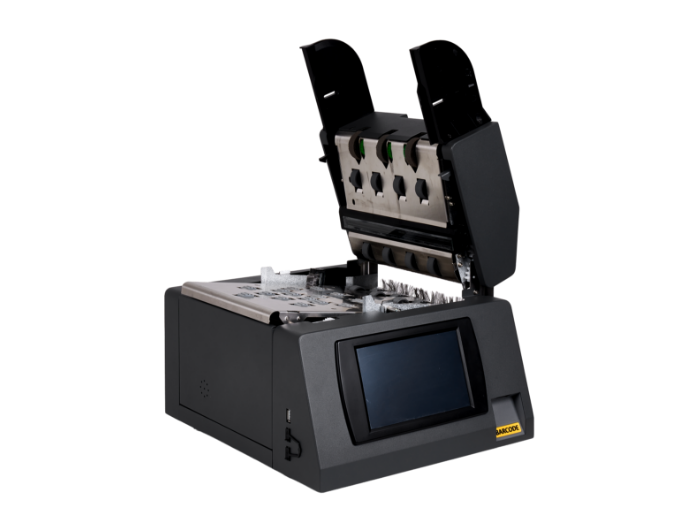

  • Top-opening structure for convenient maintenance

Specifications

Scanner
Image Sensor CIS (Contact Image Sensor)
Image Resolution 200dpi
Image Output 8bit 256gray
Light Source RGB
Scan Area 120mm* 220mm (based on envelop specifications)
Speed Max 120dpm (envelops)
Scan Size Conforms to envelop specifications
Image Type BMP (only for recognition area)
Others
Hopper Capacity Max 50 envelops
Stacker Capacity Max 50 envelops (Free air)
Number of Stacker 1 Pocket
Double Detection Yes, detection based on image (Double/Long Note/Short Note)
Pickup Mechanism ADF and Retard Type
Recognition Barcode (based on envelop specifications)
External Data Output Output from External USB Memory
Audio Guidance Yes
Interface & Power
OS & Controller Windows CE based PC controller
Display 7 inch Touch LCD
Recognition Linux based BCR engine
USB Connectors 3
S/W interface to Controller Embedded Linux
Power Free Voltage (100V~240V, 50/60Hz)
Physical
Dimension 339mm(W) X 260mm(H) X 368mm(L)
Weight 12kg (approx)
Option
Storage Box Reinforced PP carrying box
