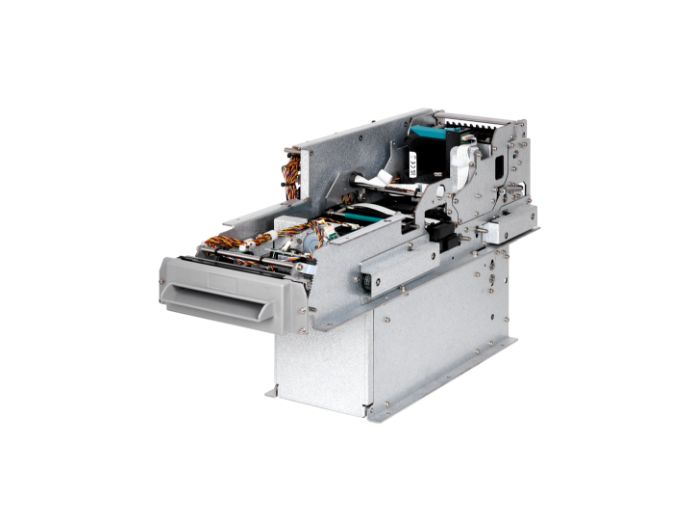

Check Processing Module HDX-3000
Check Processing Module HDX-3000
Check Processing Module HDX-3000
Check Processing Module HDX-3000

Check Processing Module HDX-3000

Excellent check processing module for kiosks, boasting superior quality and outstanding performance

This product is optimized for kiosks that accept valuable documents, such as checks and vouchers. It guarantees accurate and stable operation with its high-resolution 200 dpi color scanning, double-feed detection and auto alignment. The model features a High-speed USB 2.0 interface, with standard support for MICR (E13B & CMC7) and the ability to endorse up to 4 lines or more.

Catalogue Download

Features

  • Optimized module for kiosks that accept valuable documents such as checks and vouchers
  • 200 dpi gray and color scanning
  • Double-feed detection
  • Single pickup and single feed structure
  • High-speed USB 2.0 interface
  • MICR supported by default (E13B & CMC7)
  • Supports max 4 lines of endorsement
  • Compact and slim design
  • Maximum 500-checks capacity stacker (Option)

Specifications

Scanner
Image Sensor Dual CIS (Contact Image Sensor)
Optical Resolution 300dpi
Image at Mono mode 200dpi, 300dpi
Image at Color mode 200dpi
Image depth B/W, 16 & 256gray, 24bit color, UV image (HDX-3000U)
Scan Height (Width) Max 108mm (Min 65mm)
Scan Length 127mm(min) ~ 225mm(max)
Speed (duplex) Mono 600mm/sec at 200dpi single feed/duplex
Speed (duplex) Color 500mm/sec at 200dpi single feed/duplex
Image Type bmp / jpg, tiff (compressed in PC)
MICR Reader Yes
OCR Aarranged by application side
Automatic Skew Aligner Yes
Double Detection Yes (Ultra sonic)
Inlet Detection Yes
Skew Detection Yes
Auto Crop Yes
Endorsement Max 4 lines
Auto Stamp Logo, Image, VOID mark
Printer location (timing) After or Before Scanning Selectable on AP
Stacking Type Free Air
Stacker Capacity Option (Max 500 checks)
Hoper Capacity Single Loading
Inlet Shutter YES (automatic)
Interface & Power
Communication High speed USB 2.0
Software Development Kit Hantle API
OS Win 7, Win 10, Win 11 (32bit and 64bit)
Power DC 24V
Physical
Dimension 156mm(W) *148mm(H) *527mm(D)
Weight 6kg (approx)
Environment (in operation) Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 %
Technical Support
Protocol Specifications Yes (Manual guidance)
SDK Yes (API and manual guidance)
Others Test Program, Dimension Drawings, SDK manual
