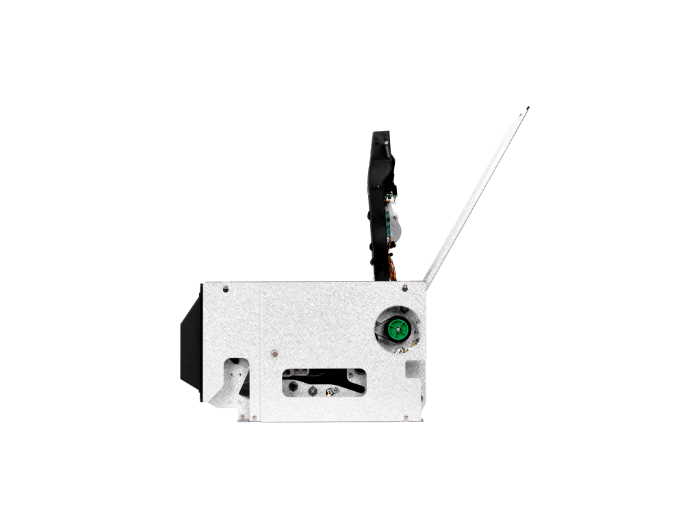

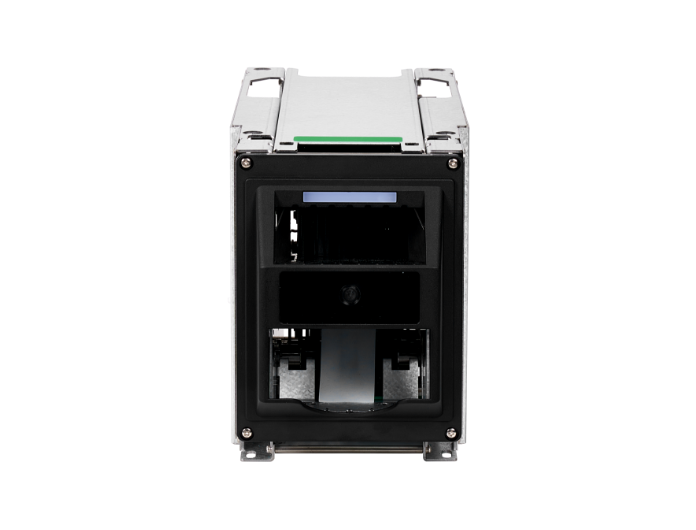

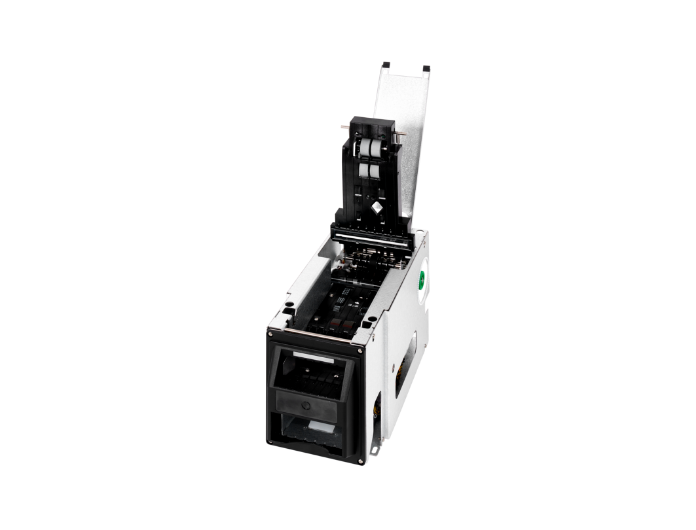

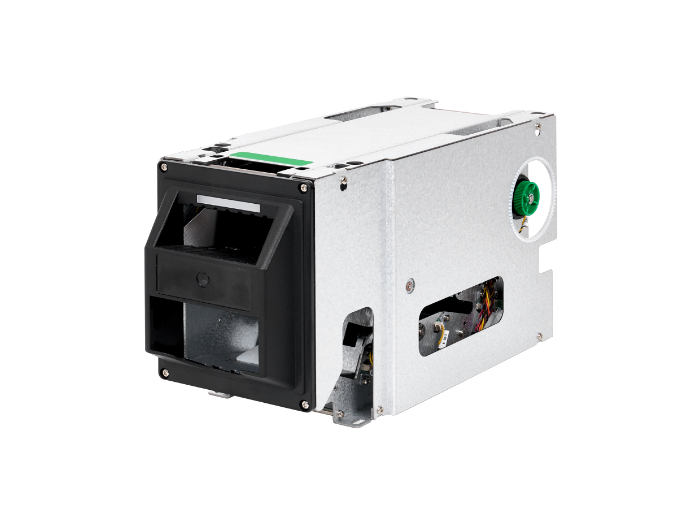

Cash Deposit Module – HAK 1
Cash Deposit Module – HAK 1
Cash Deposit Module – HAK 1
Cash Deposit Module – HAK 1

Cash Deposit Module – HAK 1

High-Performance Banknote Deposit Module with Compact Design and Outstanding Operational Stability

This is a high-performance kiosk deposit module that combines a compact design with outstanding stability, capable of processing up to 100 banknotes and vouchers, in a single batch to maximize efficiency.



The ultrasonic double-feed detection prevents document input errors, while its ability to store and transmit full images of the banknotes ensures transparent and accurate transaction recording.





Furthermore, the simplified internal structure makes maintenance exceptionally easy, and its optimization for the kiosk environment provides the highest operational efficiency.



Catalogue Download

Features

  • Optimized for kiosk applications and specifically designed for banknotes and vouchers.
  • Deposit Capacity: Up to 100 notes per transaction
  • Reject Capacity: Up to 100 notes
  • Free Air Stacking
  • Auto Inlet Shutter
  • Ultrasonic Double-Feed Detection
  • Full Image Storage and Transmission
  • Simple internal structure for easy maintenance

Specifications

Scanner
Product Type High-performance deposit module
Accepted Dimension Min 60~79mm(width) / Max 120~166mm(length)
Deposit Speed 2 notes/sec
Deposit Direction Short edge
Banknotes KRW, JPY, Gift Ticket with Barcode (to be with other currencies)
Validation Sensor Dual CIS (Contact Image Sensor)
Optical Resolution 300dpi
Target Resolution 100dpi, 200dpi
Light Source RGB+IR
Max Deposit(1 time) Capacity 100 notes
Max Reject Capacity 100 notes
Max Escrow Capacity N/A
Max Stack Capacity N/A
Stacking Type Mixed and Free air to bin
Double Feed Detection Yes (Ultra sonic)
Inlet Shutter Yes
Reject Shutter N/A
Retract N/A
Cassette Locker N/A
Interface & Power
Communication Communication RS-232C / High speed USB 2.0 (for image)
Software Development Kit Hantle API
OS Win 7, Win 10, Win 11 (32bit and 64bit)
Power DC 24V (50/60Hz)
Physical
Physical 156mm(W) *230mm(H) *320mm(D)
Weight 6kg (approx)
Environment (in operation) Temperature: +5 °C to +45 °C / Humidity: 30 % to 70 %
Technical Support
Protocol Specifications Yes (Manual guidance)
SDK Yes (API and manual guidance)
Others Test Program, Dimension Drawings, SDK manual
